DS18B20 水溫感測模組

NT$220

DS18B20 水溫感測模組

此水溫感測模組可以用在土壤溫度檢測、水箱溫度控制等等,水溫感測棒部份採用DS18B20溫度感測器晶片,以不銹鋼管封裝(防水、防潮、防生鏽)

描述

技術規格

1.訊號傳輸型式: 數位 (Digital)

2.電壓範圍:3.0V ~ 5.5V。

3.測溫範圍:-55℃ ~ +125℃

4.不銹鋼外殼 (6*50mm),引線長度100cm

5.9~12位可調分辨率

6.輸出引線:紅色(VCC),藍色(DATA),黑色(GND)

商品內容

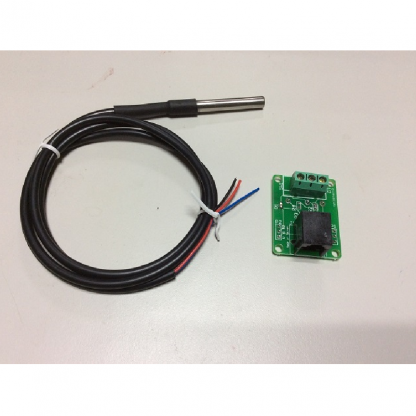

  • DS18B20 專用感測轉接板                 1個
  • DS18B20感測棒                         1條
  • RJ11 6P4C  25cm 信號線                 1條



程式範例

 在此範例配合S4A IO Board 做簡單實驗, 顯示此模組感測溫度。

#include <OneWire.h>

#include <DallasTemperature.h>

// Data wire is plugged into port 2 on the Arduino

#define ONE_WIRE_BUS 2

// Setup a oneWire instance to communicate with any OneWire devices (not just Maxim/Dallas temperature ICs)

OneWire oneWire(ONE_WIRE_BUS);

// Pass our oneWire reference to Dallas Temperature.

DallasTemperature sensors(&oneWire);

void setup(void)

{

  // start serial port

  Serial.begin(9600);

  Serial.println(“Dallas Temperature IC Control Library Demo”);

  // Start up the library

  sensors.begin();

}

void loop(void)

{

  // call sensors.requestTemperatures() to issue a global temperature

  // request to all devices on the bus

  Serial.print(“Requesting temperatures…”);

  sensors.requestTemperatures(); // Send the command to get temperatures

  Serial.println(“DONE”);

  Serial.print(“Temperature for the device 1 (index 0) is: “);

  Serial.println(sensors.getTempCByIndex(0));

}



接線範例

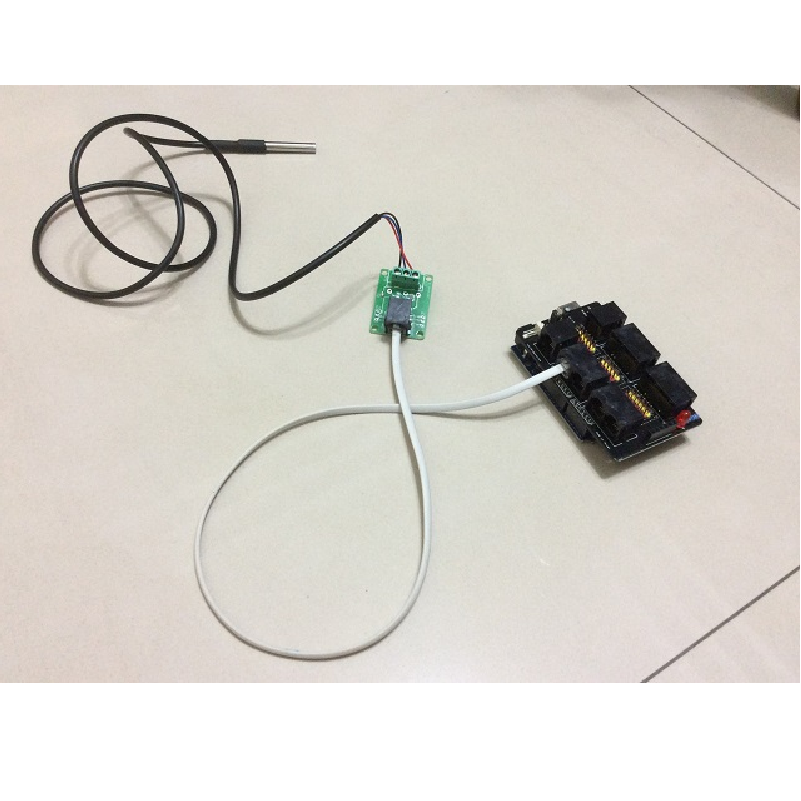

 接線方式如果搭配S4A IO Board或 S4A Sensor Board只要把電話接頭(RJ11)接到標示D2D3孔位即可完成連接。
